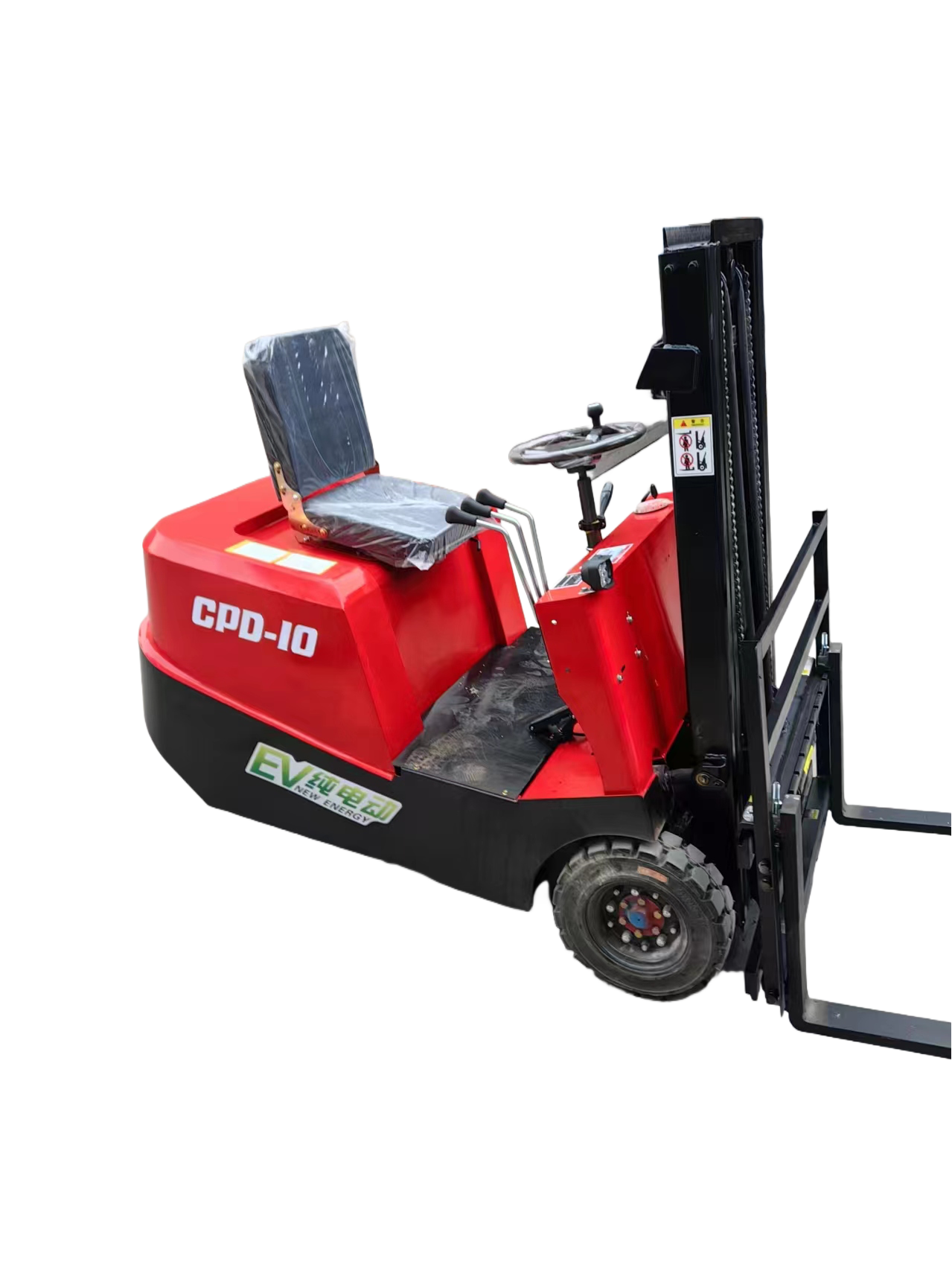

1 Ton Electric Forklift
(3 wheel type)
Item
Unit
Specification
Model

CPD-10
Rated lifting capacity
kg
1000
Length without fork
 mm
1750
Length with fork
 mm
2470
Frame width
mm
1000
Lowered height of mast
 mm
1680
Height of overhead guard
 mm
1800
Wheelbase
 mm
1300
Front suspension distance
 mm
250
front wheelbase
 mm
710
 Rear wheelbase
 mm
50
 Mast lower end (empty/full)
 mm
60
 Minimum ground clearance Middle of frame (empty/full)
 mm
100
 Maximum lifting height without load
 mm
2000 or 3000
 Mast inclination
 (°)
15
 Standard machine weight
 kg
1200
 Maximum lifting speed without load
 mm/s
100
 Maximum lifting speed at full load
 mm/s
90
 Minimum turning radius
 mm
1650
 Maximum running speed without load
 km/h
8
 Maximum running speed at full load
 km/h
6
 Maximum climbing grade with full load
 %
5
 Load center distance
 mm
460
 Front wheel specifications
 /
 400-8
 Rear wheel specifications
 /
 300-100
Lifting motor power
 KW
1.3
 Drive motor power
 KW
1.8
 Charger input voltage
 V
220
 Charging time
 h
8
 Battery capacity
 ah
52
 Rated voltage
 V
48
